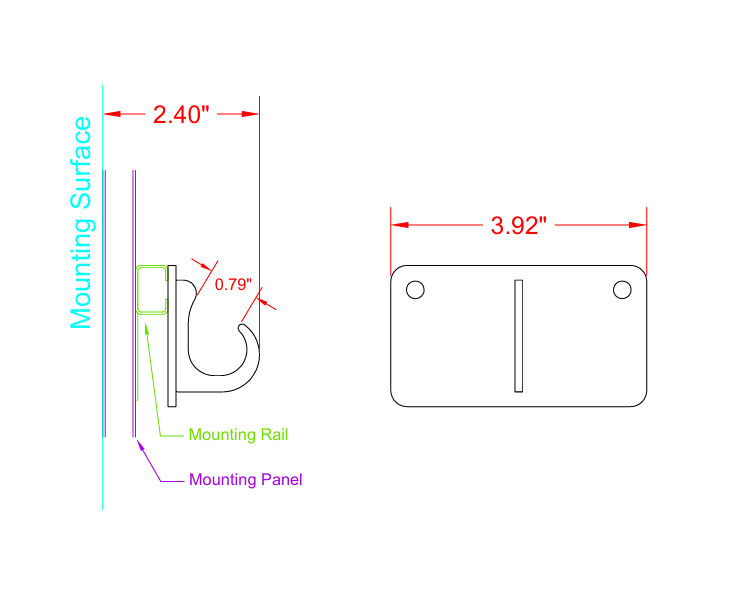

Heavy Duty Hook

Things to look for when ordering:

• Measure your bay door openings or wall height to determine what height Back Panel works best for your situation.
• When measuring bay doors a few things to pay attention to are slide out trays, locks on bay doors and the latches on bay openings.
• If you have sliding storage trays you can still mount accessories on the Back Panels at the bottom as long as you have enough clearance for the accessory you choose. If not you still can mount the Back Panel and hold the accessory up just high enough so it clears the top of your sliding storage tray.
• Pay attention to the depth of our product after its mounted on the bay door. Confirm it will clear anything that cant be moved inside the bay when the door is closed. What's nice with our adjustable panels is all of the accessories for it are adjustable so you can move them around to help clear things that may be in your way.

• If you are purchasing a Back Panel we recommend using rivets when mounting it to your bay door. We supply rivets which are designed for a metal mounting surface that is between 1/16" - 1/8" thick. If you are mounting it to wood you will need to supply your own screws that that work for your mounting conditions.
• See the Link below for the Installation Instructions.

Materials:

• Our Adjustable Panel Systems are made either from galvanized steel or Aluminum depending on the part.
• The galvanized steel is used for its strength and weather resistant quality's. You can expect the edges of the parts to oxidize to a dark brown. This is only at surface level and its own way of sealing the edges.
• The Aluminum is used for parts that need to be thicker while keeping the parts strong and light weight. Aluminum is also a great weather resistant material.
• The rivets for mounting the Back Panel are zinc coated steel.
• All screws are Stainless Steel.

Cleaning:

• We recommend cleaning our products with water and a little mild detergent.
• When done cleaning, dry thoroughly for a long lasting product!

• Small Level
• Tape measure
• Rivet Gun
• 5/32nd Drill bit
• 5/32nd Allen Key

*** We offer an installation kit which comes with the drill bit and helpful depth limiting drill bit stop & a 5/32nd Allen Key ***

Installation Kit
